HP81-24MX Hybrid Pumps

Eco-Tech Pump’s hybrid pumps are designed to handle dirty water and viscous slurries with small solids while delivering high operating pressures up to 800 feet of head. These pumps are highly suitable for mining, oilfield, and construction applications, where dewatering and water transfer are critical needs.


HP81-24MX Hybrid Pumps

HP81-24MX Hybrid pumps are specially designed to handle high-head applications with long service life and suction lift capabilities. They have multi-vane, enclosed impellers that provide industry-leading efficiency. These pumps are commonly used in mining, agricultural, and industrial dewatering applications. They are available in both horizontal frame and SAE engine-mounted configurations.



  • ●  Up to 25 feet of suction lift
  • ●  Heads to 800 feet
  • ●  Flows to 8,000 GPM
  • ●  Extra heavy wall thickness
  • ●  High-quality construction
  • ●  Robust Mount Frame with mounting surfaces
  • ●  CA6NM impellers

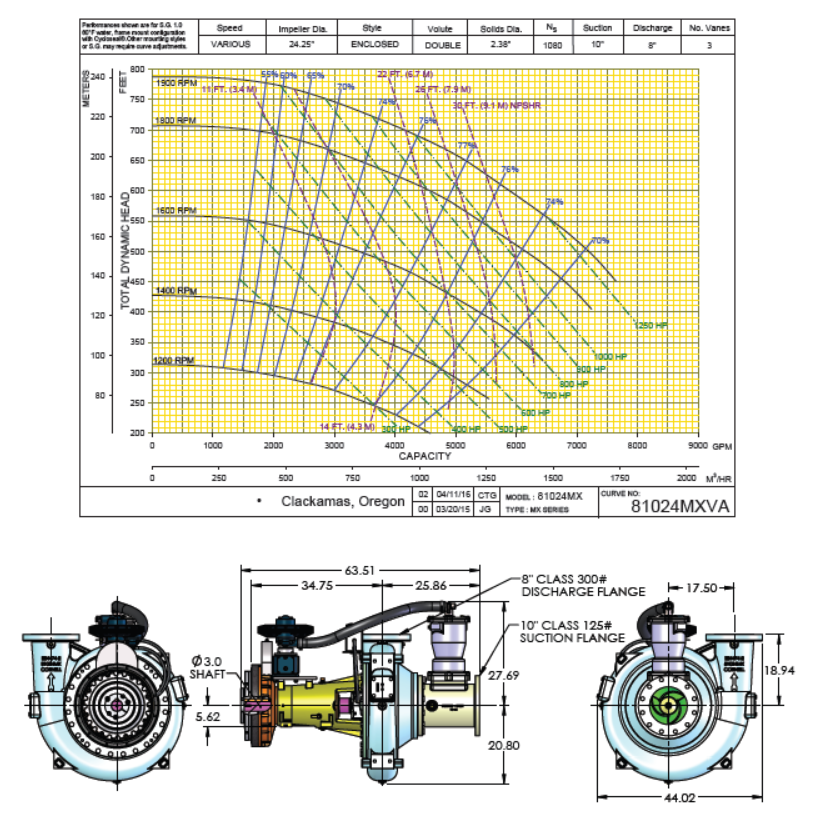

    • Operating range

    MIN FLOW 1300 GPM 295 m3/h
    MAX FLOW 6150 GPM 1396 m3/h
    DISCHARGE SIZE 8” 200 mm
    SUCTION SIZE 10” 250 mm
    SOLIDS HANDLING 2.38” 60 mm
    MAX SPEED 1800 RPM 1800 RPM
    SHUT-OFF HEA 700’ 213 m
    BEP HEAD 552’ 168 m
    BEP FLOW 4700 GPM 1067 m3/h
    BEP PERCENT 78% 78%
